Linesense H8045N
LINEAR HEAT DETECTION (LHD)
(85°C, 185°F Nominal)

The technology behind the Linear Heat Detection (LHD) cable is proven and simple, making it a product of choice for difficult and challenging applications where other technologies may struggle.

It is easy to install, with low maintenance therefore making it a cost effective solution where project expenditure requires to be kept at a minumum.

The sensing cable is created from a two twisted steel conductors, with temperature sensitive insulation on each conductor. The cable has an overall Nylon outer sleeve. When the temperature sensitive insulation reaches it's predetermined alarm temperature the two conductors short together providing the digital or switched signal.

The cable can connect to any unit capable of monitoring a switched signal, i.e. Conventional fire panel, addressable switch monitor unit or PLC.

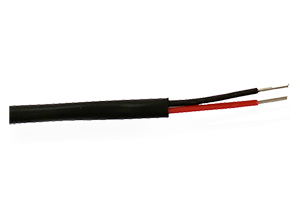

H8045N Digital LHD Cabling

The outer sleeve of the Linesense H8045N is nylon which offers chemical and water resistance, so the cable can be used in harsh dirty environments.

Features

  • Digital switch operation.
  • Continuous sensing along the length of the element.
  • Fixed alarm temperature operation.
  • Switch monitoring unit and conventional alarm panel compatible.
  • Can be used in Hazardous areas using safety barriers.
  • Rilson outer sleeve that is chemical & water resistant.
  • Rugged and durable construction.
  • Maintenance free, simple installation.
  • Small diameter and bend radius.
  • FM Approved.

Applications



Technical Data

Specifications

Alarm temperature:

 85°C

Max amb temperature:

 45°C

Min operating temperature:

 -40°C

Min installation temperature:

 -15°C



Electrical

Resistance:

100 ohms / Km @ 20°C

Capacitance:

45 pF to 130pF

Inductance:

0.74 ųH to 1.3 uH

Voltage rating:

110vdc 1amp

Time to detect a small flame:

5 sec (Flame touching)



Mechanical

Outside diameter:

 3.35mm

Colour:

 Black

Number of cores:

2

Core diameters:

0.9mm

Core colours:

Black and red

Minimum bend radius:

50mm (Cold store 100mm)

Weight:

18Kg/Km on the reel (weight of reel typically 2Kg)

Ordering Info

Part Number

Description

51100-085

Linesense H8045N sensing cable 85°C Alarm temperature Black Nylon outer sleeve. (ordered by the meter)

Optional

52100-001

DLI-2K Digital Location Interface 2Km

52100-002

DLI-10K Digital Location Interface 10 Km

52101-001

DIM Digital Interface Module DIN rail mounted

53000-001

Portable test oven 1m
